The VPE Elevon
The VPE Elevon is a compact DSP active cardioid electrodynamic loudspeaker aimed at providing the best possible sound in your home. It is based on 21st Century DSP technologies, SOTA Class D amplification and the latest acoustic design concepts
from both consumer and pro high-end audio design.
The Elevon was the result of five years of careful design and experimentation and provides the best fit, electrically, acoustically and ergonomically for normal listening rooms from 150 to 500 sq. ft. The Elevon is unique in a number of regards, but the most important is the use of a powerful Analog Devices DSP processor for controlling the acoustic response of each driver including the crossover frequencies,
amplitude and timing, independently. As a result, the loudspeaker can be precisely matched to the acoustics of your room and your preferred timbre so your music reflects the recording venue and NOT your room’s colorations.
The Elevon integrates a 1000W suite of SOTA Class D power amplifiers, including two Orchard Audio SK25 150W GaN-FET modules for the midrange and the tweeter, and a powerhouse ICEPower 700W MOSFET module for the woofer. The Orchard GaN- FET amp has been found by our listening panel and many audio reviewers to be the most natural sounding Class D amplifier on the market due to its
superb design and its 1+MHz PWM switching frequency. Indeed, it rivals many of the best Class A amps on the market.
With the Elevon, all you need to build a great system is a streamer or preamp and sources to hear all your favorite music.
Sapele Plank
$15,000.00 PER PAIR – CALL US FOR DELIVERY AND FINISH OPTIONS !!
Award-winning Store
Shipped in Weeks
We Have You Covered
Money-Back Guarantee
Made to Your Order
Technical Support 24/7
Specifications:
Dimensions: 41” tall by 13” wide by 12″ deep, Weight: 75 Lb.s
Frequency Response: 25 Hz to 20,000 Hz +/- 1 dB to user target curve, Amplitude Response: Up to 105 dB
Digital Signal Processor: SPEAKERPOWER 400 MHz Analog Devices DSP with AKM Velvet Sound ADC / DAC (24 Bit / 96 Khz).

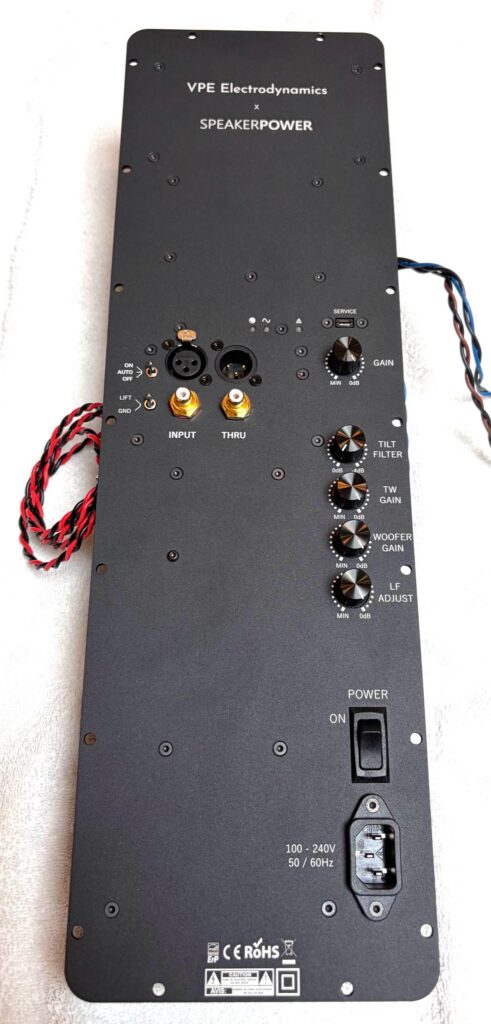

DSP Controls: Gain, Tilt Filter (QUAD Style), Tweeter Gain, Woofer Gain, LF Adjust (Bass Boost) on Rotary Controllers
Cabinet: Tapered 2-Chamber Cabinet with Sealable Cardioid Side Cancellation Slots for the Woofer chamber. Allows for Sealed (Q=0.7) or Dipole Bass Polar Response. Woofer Response Fully Controlled via DSP.
Drivers: (1) SB Acoustics Satori 190mm Coaxial Papyrus Reed Cone Midrange with an Integral 25” soft dome Tweeter using a Neodymium magnet + (1) SB Acoustics Satori 240mm Papyrus Reed Cone Woofer.

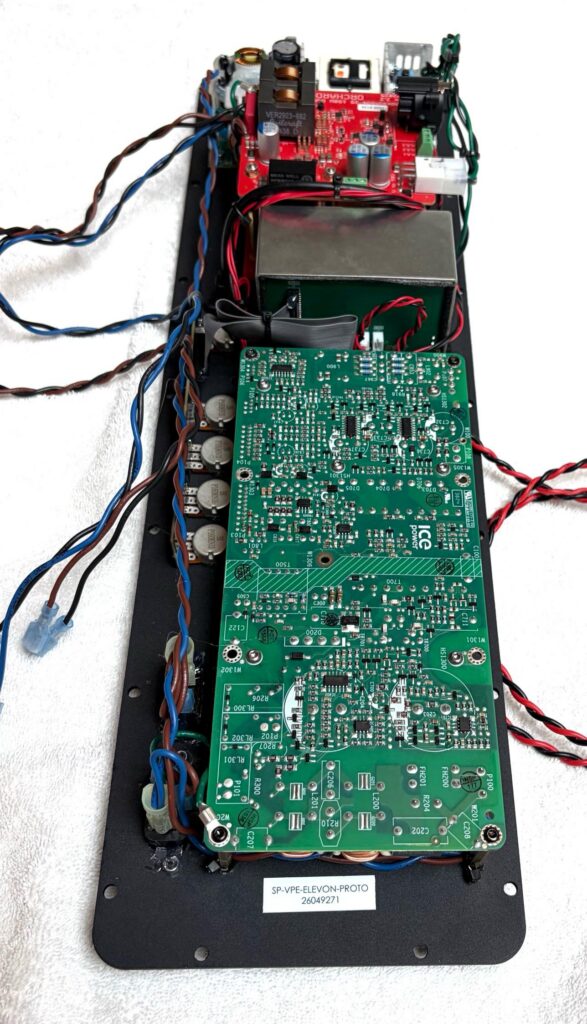

Power: Integral SPEAKERPOWER 3-Way DSP / Plate Amplifier Set: Woofer – Midrange – Orchard Audio Starkrimson SK25 150W GaN-FET Module, Tweeter – Orchard Audio Starkrimson SK25 150W GaN-FET Module, Woofer – ICEPower 700W AS1 Module,
